▸ 1. Understanding Box Sealing Tapes: Core Concepts and Market Overview
Box sealing tapes are pressure-sensitive adhesive tapes primarily used for sealing cartons in logistics and packaging industries. They consist of a backing material (e.g., BOPP, PVC, or paper) coated with adhesives (acrylic, rubber, or hot-melt). The global box sealing tapes market reached $38 billion in 2025, driven by e-commerce growth and sustainable packaging demands. Key properties include tensile strength (≥30 N/cm), adhesion force (≥5 N/25mm), and thickness (typically 40-60 microns). The industry is shifting toward eco-friendly materials like water-activated paper tapes and biodegradable films, with Asia-Pacific dominating production (55% share).
▸ 2. Types of Box Sealing Tapes: Materials and Characteristics Comparison
2.1 Acrylic-Based Tapes
Acrylic-based box sealing tapes offer excellent UV resistance and aging performance. They maintain adhesion in temperatures from -20°C to 80°C, making them ideal for outdoor storage and cold chain logistics. Compared to rubber adhesives, they emit fewer VOCs and comply with EU REACH standards. However, initial tack is lower, requiring higher pressure during application.
2.2 Rubber-Based Tapes
Rubber adhesive tapes provide instant stickiness even on dusty surfaces, with tack values exceeding 1.5 N/cm. Their aggressive adhesion makes them suitable for rapid production line sealing. Limitations include poor temperature resistance (degradation above 60°C) and potential oxidation over time.
2.3 Hot-Melt Tapes
Hot-melt tapes blend synthetic rubbers and resins to achieve a balance of quick adhesion and environmental resistance. They outperform acrylics in initial tack and rubbers in temperature stability (-10°C to 70°C). Typical applications include general-purpose carton sealing for consumer goods and electronics.
▸ 3. Key Applications: Where and How to Use Different Sealing Tapes
3.1 E-Commerce Packaging

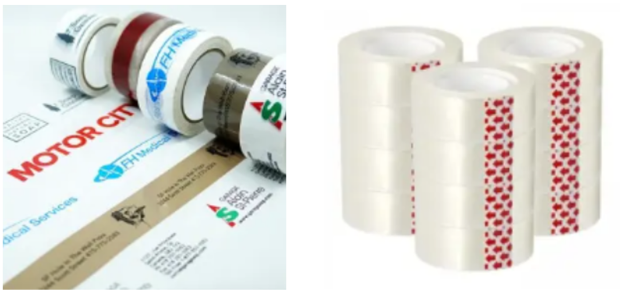

E-commerce requires box sealing tapes with high transparency to display branding and tamper-evidence. Super clear BOPP tapes (90% light transmission) are preferred, often customized with logos using flexographic printing. Demand surged by 30% in 2025 due to global e-commerce expansion.
3.2 Heavy-Duty Industrial Packaging
For packages exceeding 40 lbs, filament-reinforced or PVC-based tapes are essential. They provide tensile strength over 50 N/cm and puncture resistance. Applications include machinery export and automotive parts shipping.
3.3 Cold Chain Logistics
Cold chain tapes must maintain adhesion at -25°C and resist condensation. Acrylic-emulsion tapes with cross-linked polymers perform best, preventing label detachment and box failure during frozen transport.
▸ 4. Technical Specifications: Reading and Understanding Tape Parameters
Understanding tape specifications ensures optimal selection:
• Adhesion Power: Tested via PSTC-101 method. Low values (<3 N/25mm) cause pop-up openings; high values (>6 N/25mm) may damage cartons.
• Thickness: Ranges from 1.6 mil (40μm) for economy grades to 3+ mil (76μm) for reinforced tapes. Thicker tapes offer better durability but higher cost.
▸ 5. Selection Guide: Choosing the Right Tape for Your Needs
Use this decision matrix:
1.Box Weight:
• <10 kg: Standard acrylic tapes ($0.10/m)
• 10-25 kg: Hot-melt tapes ($0.15/m)
• 25 kg: Filament-reinforced tapes ($0.25/m)
2.Environment:
• Humid: Water-resistant acrylics
• Cold: Rubber-based (avoid acrylics below -15°C)
3.Cost Calculation:
• Total Cost = (Cartons per month × Tape length per carton × Cost per meter) + Dispenser amortization
• Example: 10,000 cartons @ 0.5m/carton × $0.15/m = $750/month.
▸ 6. Application Techniques: Professional Taping Methods and Equipment

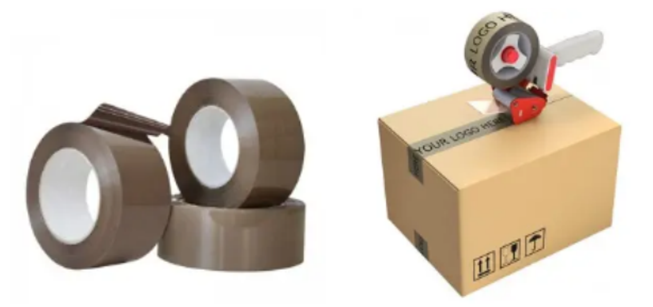

Manual Taping:
• Use ergonomic dispensers to reduce fatigue.
• Apply 50-70mm overlap on box flaps.
• Avoid wrinkles by maintaining consistent tension.
Automated Taping:
• Side-driven systems achieve 30 cartons/minute.
• Pre-stretch units reduce tape usage by 15%.
• Common error: Misaligned tape causing jams.
▸ 7. Troubleshooting: Common Sealing Problems and Solutions
• Lifting Edges: Caused by dust or low surface energy. Solution: Use high-tack rubber tapes or surface cleaning.
• Breakage: Due to excessive tension or low tensile strength. Switch to reinforced tapes.
• Adhesion Failure: Often from temperature extremes. Select temperature-rated adhesives.
▸8. Sustainability: Environmental Considerations and Eco-Friendly Options
Water-activated paper tapes (WAT) dominate eco-friendly segments, comprising 100% recyclable fibers and starch-based adhesives. They decompose in 6-12 months versus 500+ years for plastic tapes. New PLA-based biodegradable films enter markets in 2025, though cost remains 2× conventional tapes.
▸9.Future Trends: Innovations and Market Directions (2025-2030)
Intelligent tapes with embedded RFID tags (0.1mm thickness) will enable real-time tracking, projected to capture 15% market share by 2030. Self-healing adhesives that repair minor cuts are under development. The global box sealing tapes market will reach $52 billion by 2030, driven by automation and sustainability mandates.
Post time: Aug-25-2025
